1 :(+)
2 :Beam break input (1)
3 :(-)
4 :OUT/Output
(1)Beam break input on thru-beam transmitter only
Input 2:
- not connected: beam made
- connected to -: beam broken

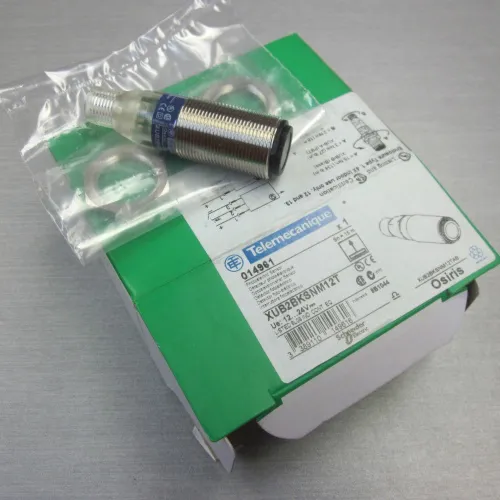

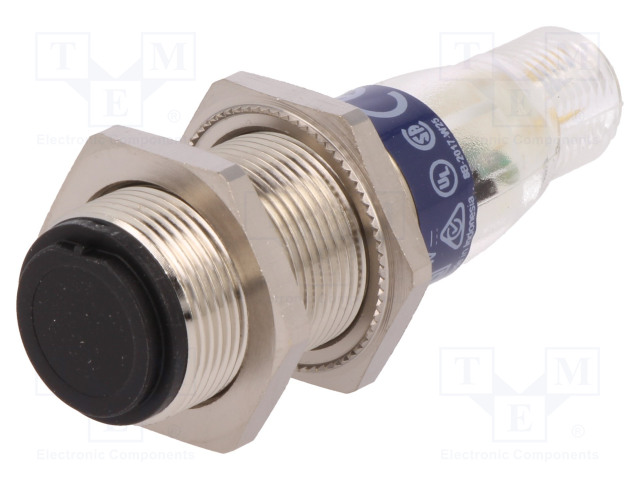

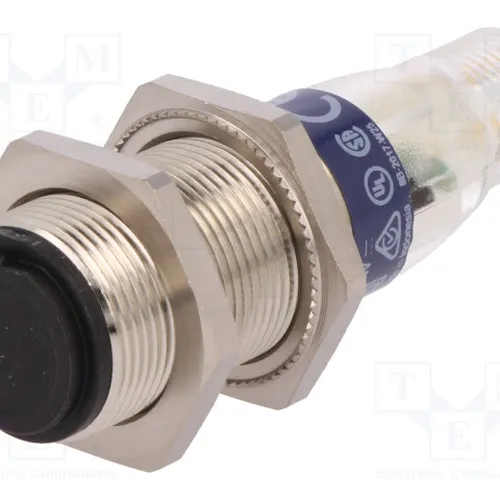

Transmitter
Dòng sản phẩm | Cảm biến quang XU |
---|---|
series name | General purpose single mode |
electronic sensor type | Photo-electric sensor transmitter |
sensor name | XUB |
sensor design | Cylindrical M18 |
detection system | Thru beam |
Material | Metal |
line of sight type | Axial |
type of output signal | Discrete |
supply circuit type | DC |
Wiring technique | 3-wire |
electrical connection | 1 male connector M12, 4 pins |
Product specific application | - |
emission | Infrared thru beam |
[Sn] nominal sensing distance | 15 m thru beam need a receiver |
